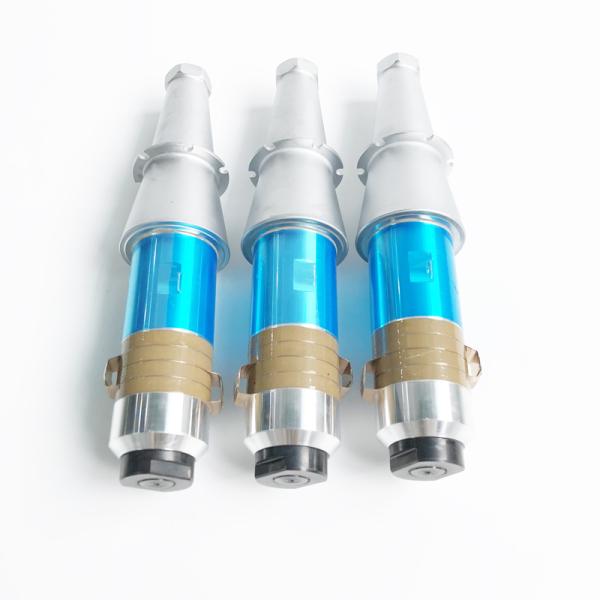

Durable Ultrasonic Transducer Transformer For 15khz/20khz Plastic Welding Machine

Name: Durable Ultrasonic Transducer Transformer For 15khz20khz Plastic Welding Machine
Brand: OURS Ultrasonic
Price: 150 USD

Wholesale Durable Ultrasonic Transducer Transformer For 15khz/20khz Plastic Welding Machine from china suppliers

Brand Name : OURS Ultrasonic

Model Number : ARS-HJHNQ201500

Certification : CE and FCC

Place of Origin : Shenzhen,China

MOQ : 1set

Price : USD150-USD160

Payment Terms : T/T, Western Union,PAYPAL

Supply Ability : 100000pcs

Delivery Time : within 5 days

Packaging Details : export carton

frequency : 15-40khz

power : 100W-4200W

Output : Switching Transducer

Usage : Vibration Sensor

Application : Plastic Ultrasonic Welding Transducer

type : 1500w ultrasonic welding transducer

Contact Now

ultrasonic transducer transformer for 15khz/ 20khz ultrasonic plastic welding machine 2000W

Ultrasound welding converts 50/60 Hertz current to 15, 20, 30 or 40 through an ultrasonic generator.

KHz power. The converted high frequency electric energy is converted into mechanical operation of the same frequency again through transducers.
The mechanical motion is then transmitted to the welding head through a set of amplitude-changing horn device. Welding head will
The received vibration energy is transmitted to the joint of the workpiece to be welded, where the vibration energy is passed through.
Friction is converted into heat to melt plastics. Ultrasound can not only be used to weld hard thermoplastic plastics
It can also process fabrics and films. The main components of an ultrasonic welding system include an ultrasonic generator.
Generator, transducer/horn/welding head triple set, die and frame. Utilization of Linear Vibration Friction Welding
Friction heat generated at the interface of two workpieces to be welded melts the plastics. Thermal energy comes from a certain pressure.
Under this condition, a workpiece moves back and forth on another surface with a certain displacement or amplitude. Once the expectations are met
At the same time, a certain amount of pressure will still be applied to the two workpieces.
Cooling and solidifying the part that has just been welded to form a tight bond. Track Vibration Friction Welding
Welding is a method of using friction heat energy to weld. When the track vibration friction welding is carried out, the upper part
The workpiece moves in orbit at a fixed speed - circularly in all directions. Exercise can be produced.
Thermal energy can make the welding parts of two plastic parts reach the melting point. Once the plastic begins to melt, the movement stops.
The welding parts of the two workpieces will be solidified and firmly connected. Small clamping force can lead to workpiece
Workpieces with a diameter of less than 10 inches can be rubbed by track vibration with minimal deformation.
Welding.

Type	Full-length(mm)	Joint Bolt(mm)	Frequency(KHz)	Resonance Impedance(Ω)	Capacity(pF)	Input Power (W)
ARS-HJHNQ-152500 P8	153	M20×1.5	15	15	13000	2500
ARS-HJHNQ-152000 P8	167	M20×1.5	15	10	9500	2000
ARS-HJHNQ-151500 P4	171	M18×1.5	15	12	12500	1500
ARS-HJHNQ-151800 P4	118	M20×1.5	20	15	15000	1800
ARS-HJHNQ-202000 P8	128	M18×1	20	10	11000	2000
ARS-HJHNQ-202000 P8	124	M18×1.5	20	12	10000	1500
ARS-HJHNQ-20700 P8	112	1/2-20 UNF	20	15	9000	700
ARS-HJHNQ-20900 P8	133	1/2-20 UNF	20	15	10000	900
ARS-HJHNQ-20600 P8	121	M18×1.5	20	15	6000	600
ARS-HJHNQ-30500 P8	77	M10×1.5	30	5	5500	500
ARS-HJHNQ-28200 P4	92.1	M10×1	28	20	3000	200
ARS-HJHNQ-28100 P8	91	M8×1	28	25	2200	100
ARS-HJHNQ-28250 P8	94	1/2-20 UNF	28	20	4000	250
ARS-HJHNQ-202000 P8	128	1/2-20 UNF	20	10	20000	2000
ARS-HJHNQ-201500 P8	124	1/2-20 UNF	20	10	16000	1500
ARS-HJHNQ-201300 P8	128	1/2-20 UNF	20	10	12500	1300
ARS-HJHNQ-201500 P8	132	1/2-20 UNF	20	10	11000	1500
ARS-HJHNQ-20900 P8	123	1/2-20 UNF	20	10	9500	900
ARS-HJHNQ-152000 P4	171	M18×1.5	15	12	10000	2000
ARS-HJHNQ-35100 P8	71	M8×1	35	25	2200	100
ARS-HJHNQ-38100 P8	66	M8×1.25	38	40	1200	100
ARS-HJHNQ-38200 P4	65	M8×1	38	14	3300	200

Durable Ultrasonic Transducer Transformer For 15khz/20khz Plastic Welding Machine

ultrasonic transducer transformer for 15khz/ 20khz ultrasonic plastic welding machine 2000W
